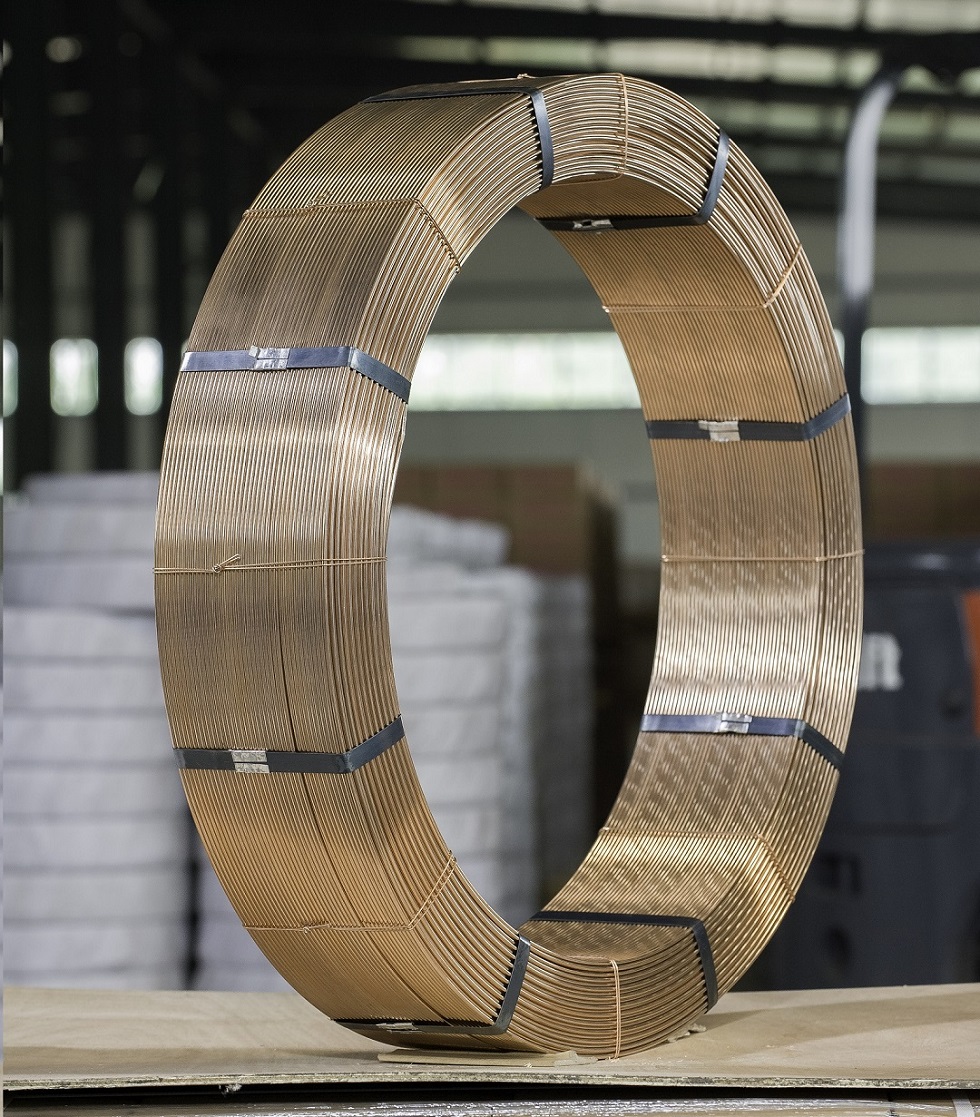

What's features of TOKO brand Submerged Welding wire H08MnA (EM12)?



The TOKO brand Submerged Welding Wire H08MnA (EM12) exhibits several notable features, making it a suitable choice for various welding applications. Here are the key features of this welding wire:

  1. Material Composition:
    • The welding wire is a copper-surfaced submerged arc welding wire, with a specific chemical composition designed for optimal welding performance.
    • The deposited metal composition typically includes low carbon content (≤0.10%), silicon (≤0.07%), manganese (0.80-1.10%), sulfur (≤0.030%), phosphorus (≤0.030%), chromium (≤0.20%), nickel (≤0.30%), and copper, ensuring excellent mechanical properties.
  2. Applicability:
    • Suitable for welding carbon steel and low alloyed steel, such as 16Mn and 14MnNb steel structures, as well as for soft steel and 490Mpa grade high-strength steel.
    • Widely used in industries like shipbuilding, steel structures, pipelines, heavy machinery, boilers, chemical containers, bridges, crane machinery, metallurgical machinery manufacturing, ocean structures, and nuclear power equipment.
  3. Performance Characteristics:
    • Exhibits excellent mechanical properties, with good molding of the weld bead and easy removability of slag.
    • Provides stable arc combustion during welding, resulting in consistent and high-quality welds.
    • The welding wire can be used with both AC and DC power sources, with the wire connected to the positive electrode when using DC.
  4. Aesthetics and Efficiency:
    • Produces weld metal with a fine appearance, ensuring aesthetic quality.
    • High deposition efficiency, making it suitable for mechanical and automatic welding processes.
  5. Compatibility:
    • Can be used with suitable fluxes, such as the fluorine-alkaline type SJ101 with an approximate alkalinity of 1.8, for enhanced welding performance.
    • Can also be paired with other suitable fluxes, like the silicon-calcium neutral type SJ301, to meet different welding requirements.
  6. Pre-Welding Preparation:
    • Before welding, it is crucial to clean the weldment surface of oil stains and rust to ensure optimal welding results.
  7. Welding Parameters:
    • A wide range of welding parameters can be adjusted to suit different welding conditions, including welding current and voltage.

In summary, the TOKO brand Submerged Welding Wire H08MnA (EM12) offers a combination of excellent mechanical properties, stable arc combustion, ease of use, and versatility, making it a reliable choice for various welding applications across multiple industries.

The information contained or otherwise referenced herein is presented only as “typical” without guarantee or warranty, and TOKO Corporation expressly disclaims any liability incurred from any reliance thereon. Typical data and Test results for mechanical properties, deposit or electrode composition and other properties were obtained from a weld produced and tested according to prescribed standards, and should not be assumed to be the expected results in a particular application or weldment. Actual results will vary depending on many factors, including, but not limited to, weld procedure, plate chemistry and temperature, weldment design and fabrication methods. Users are cautioned to confirm by qualification testing, or other appropriate means, the suitability of any welding consumable and procedure before use in the intended application.
