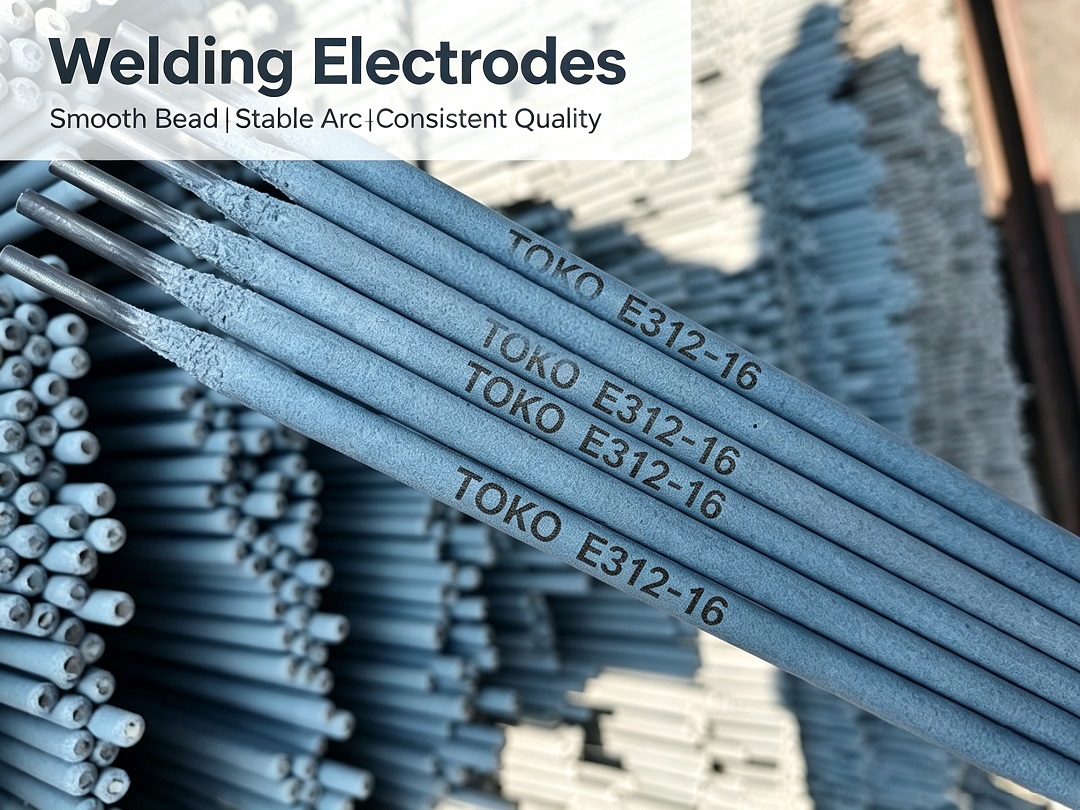

TOKO AWS A5.4 E312-16, stainless steel welding rods that are often used for general-purpose welding of mild and low-alloy steels. The rods are low-hydrogen electrodes that produce welds of high quality with good bead characteristics and a smooth arc transfer. They produce high impact toughness, mechanically sound welds with good bead shape, porosity, and slag detachability. They are often used in all welding positions and can provide excellent results on low-alloy and mild steels under a variety of welding conditions..

Can be used by anyone, regardless of prior welding experience. Features a superior combination of tensile strength and elongation. The arc is so ionized that you can not short it out.

E312-16 is used for welding type 316L or 318 stainless steels. It has a maximum of .04% carbon content in the weld metal, which reduces the possibility of carbine precipitation and consequent intergranular corrosion. This electrode is widely used in the welding of chemical equipment..

Features of E312-16

  • Can be used for joining hard to weld materials and dissimilar metals
  • Applications should be limited to 800°F (420°C)
  • The weld deposits exhibit high tensile strength and offer some resistance to abrasion
  • Weld deposits work-hardens and allows for good wear resistance

Typical Applications

  • Tool Steels
  • Hard to Weld Steels
  • Cast and Wrought Alloys
  • Dissimilar Metals

Welding Positions

 All positions, except vertical down

  • AWS A5.4 E312-16 Chemical Compositions (%)
    Elements C Mn Si S P Cu Ni Cr Mo Balance
    Requirement ≤0.15 0.5~2.5 ≤1.0 ≤0.02 ≤0.03 ≤0.75 8.0~10.50 28.0~32.0 ≤0.75 ---
    Results 0.04 1.24 0.45 0.01 0.017 0.20 9.72 28.50 0.015 ---

    　

    AWS A5.4 E312-16 Mechanical Properties
    　 Yield Strength (MPa) Tensile Strength (MPa) Elongation(%)  Akv (J/℃)
    Requirement / ≥660 ≥22 /
    Results / 760 26 /

Electrode Diameter (MM) Electrode Length (MM) AMP Range (A)
2.5 300 70 ~ 85
3.2 350 85 ~ 110
4.0 400 110 ~ 140
5.0 400 120 ~ 160

　

The information contained or otherwise referenced herein is presented only as “typical” without guarantee or warranty, and TOKO Corporation expressly disclaims any liability incurred from any reliance thereon. Typical data and Test results for mechanical properties, deposit or electrode composition and other properties were obtained from a weld produced and tested according to prescribed standards, and should not be assumed to be the expected results in a particular application or weldment. Actual results will vary depending on many factors, including, but not limited to, weld procedure, plate chemistry and temperature, weldment design and fabrication methods. Users are cautioned to confirm by qualification testing, or other appropriate means, the suitability of any welding consumable and procedure before use in the intended application.
