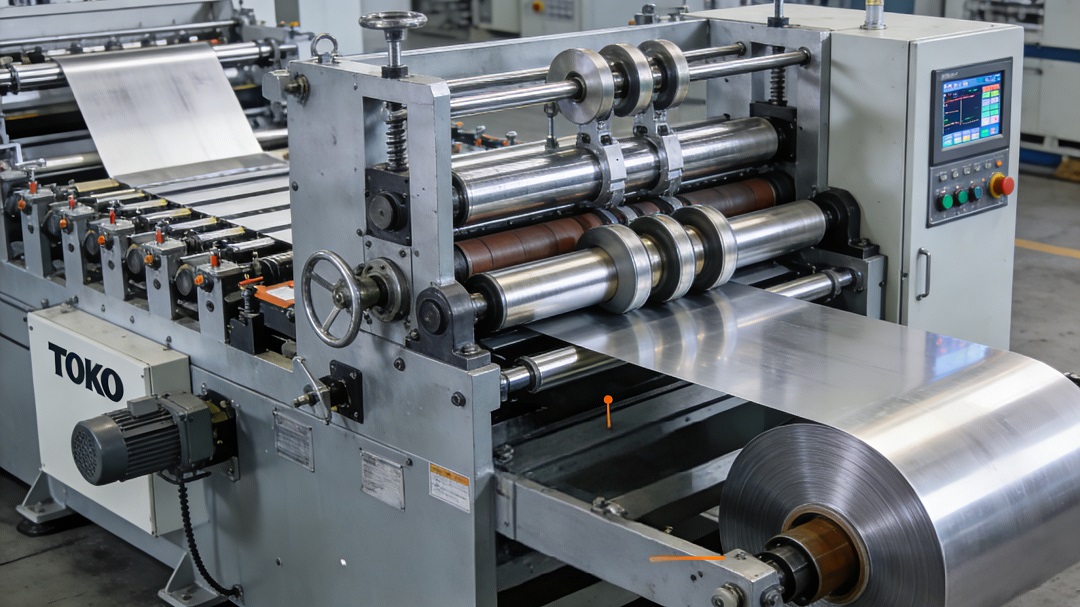

Uncoiler → Slitter → Recoiler
Heavy-duty hydraulic uncoiler, precision slitter head and tandem recoiler with quick-change arbors for fast changeovers.
Precision slitting, redefined
Fully automated · 24/7 operation · touchscreen recipe control
Wide processing scope
Thickness 0.12 – 25.0 mm · Width 300 – 2500 mm · Up to 12 cuts per pass, in one continuous line.
CNC automation
Touchscreen recipe management, automatic knife gap control and real-time diagnostics via Siemens or Mitsubishi CNC.
Energy smart
Servo tensioning and regenerative braking cut power consumption by up to 20% versus conventional DC drives.
⚙️ The three-stage core
- Uncoiler: hydraulic mandrel, peeler, automatic edge control and coil car for fast loading.
- Slitter: D2 tool-steel knives, quick-change arbors, 0.05 mm radial runout, scrap winder included.
- Recoiler: overarm separator, constant strip tensioning and coil car exit for damage-free coils.
⚡ Technical specifications
Every line is configured to your coil data — below is the standard TOKO range.
Thickness0.12 – 25.0 mm (MS / SS / Al / Cu)
Width range300 – 2500 mm
Slitting accuracy±0.05 mm (standard) · ±0.1 mm (heavy gauge)
Line speedup to 300 m/min
Coil weightup to 35 tons
Main drive110 – 450 kW AC / servo
Number of stripsup to 12 (thin gauge) · 6 (heavy gauge)
Control systemSiemens 840D / Mitsubishi CNC
Knife materialD2 / M2 tool steel, carbide option
CertificationCE marked, full safety compliance
Materials processed
One line, many substrates — with recipe switching in under two minutes.
Mild Steel (MS)
High-strength Steel (HSS)
Galvanized (GI)
Cold Rolled (CR)
Hot Rolled (HR)
Stainless 304 / 316
Copper / Brass
Aluminum
Silicon Steel
Design focus
Built for 99% uptime and minimal burr, with modular assemblies for simple maintenance.
- Automatic knife gap control
- Anti-friction bearings throughout
- CE-compliant guarding & interlocks
- Spare parts available for 10+ years
Applications
Wherever coil needs to become precise, repeatable strip.
- Automotive & EV components
- Construction & roofing profiles
- Transformer cores & solar frames
- Tube mills & HVAC ducting
Industries we serve
AutomotiveBody & EV parts
ConstructionRoofing & profiles
Solar & EnergyFrames & cores
HVACDucting & panels
Why manufacturers choose TOKO
01
In-house engineering
Mechanical, hydraulic and CNC design are all done under one roof — so customisation is fast and accountability is clear.
02
Full-line responsibility
Uncoiler, leveller, slitter, recoiler, hydraulics and controls are supplied as one integrated, tested line.
03
Global commissioning
Installation, operator training and remote diagnostics delivered by TOKO engineers in 40+ countries.
Our TOKO slitting line has run 16h/day for 10 years — still ±0.06 mm. Outstanding support.
Certifications & quality
ISO 9001:2015
CE Marked
TÜV Inspected
SGS Verified
Frequently asked questions
What materials can the TOKO slitting line process?
Mild steel, high-strength steel, galvanized, CR, HR, stainless steel 304/316, copper, brass, aluminum and silicon steel.
What is the maximum coil weight and line speed?
Maximum coil weight is 35 tons and line speed reaches up to 300 m/min, with ±0.05 mm slitting accuracy as standard.
What control system is used?
Siemens 840D or Mitsubishi CNC with touchscreen recipe management, automatic knife gap control and remote diagnostics.
Do you offer customised slitting line solutions?

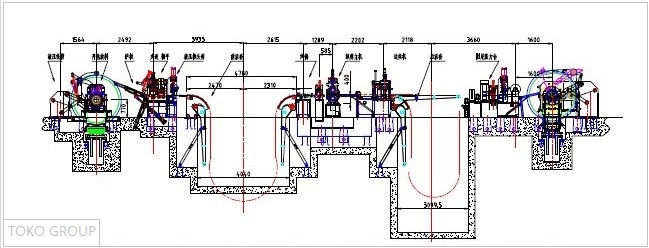

Yes. We tailor thickness, width, speed, number of cuts and automation level to your production requirements, and supply layout drawings before manufacturing begins.
Talk to a slitting engineer
Send us your coil data and we will return a line configuration, layout drawing and budget price — usually within 24 hours.
