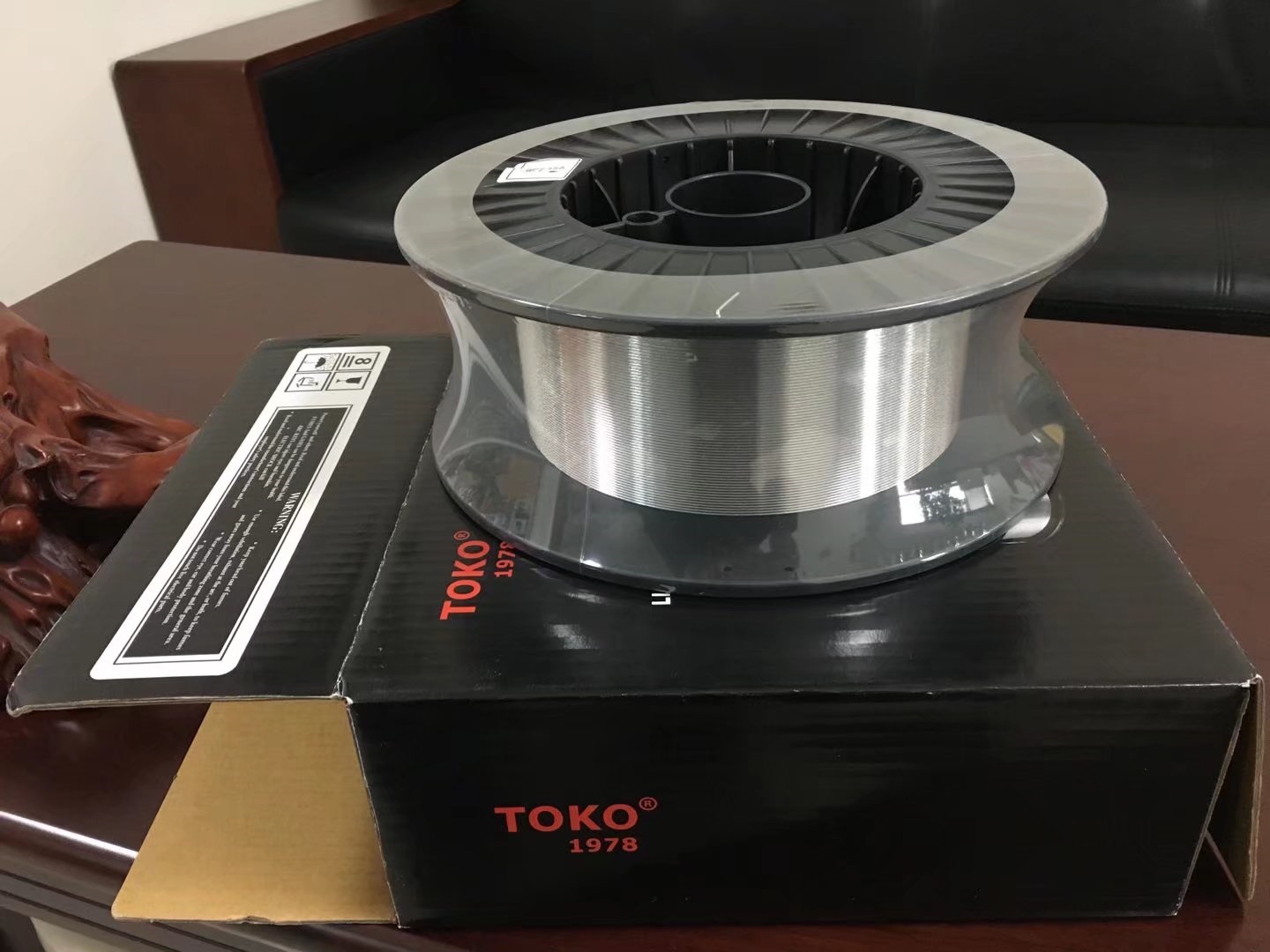

Features of TOKO Brand Welding Wire AWS A5.10 ER5356
Exceptional performance for aluminum welding applications
Aluminum-Magnesium Alloy
- ER5356 is an aluminum-magnesium alloy welding wire
- Contains approximately 5% magnesium for strength
- Ideal for welding 5XXX series aluminum alloys
Excellent Corrosion Resistance
- Provides excellent corrosion resistance in marine environments
- Suitable for saltwater applications
- Maintains integrity in harsh conditions
High Strength
- Delivers high tensile strength welds
- As-welded tensile strength of 35,000 psi (240 MPa)
- Good ductility and fatigue resistance
Versatile Applications
- Widely used in marine and shipbuilding applications
- Ideal for automotive and transportation industries
- Suitable for bicycle frames and architectural applications
Easy Feeding & Excellent Arc Characteristics
- Smooth feeding in MIG welding applications
- Stable arc with minimal spatter
- Good wetting action and bead appearance
Multi-Process Compatibility
- Suitable for MIG (GMAW) and TIG (GTAW) welding
- Can be used with both push and pull feeder systems
- Available in spool, coil and straight lengths
Technical Specifications
| Property | Value | Standard |
|---|---|---|
| Tensile Strength | 35,000 psi (min) | AWS A5.10 |
| Yield Strength | 18,000 psi (min) | AWS A5.10 |
| Elongation | 20% (min) | AWS A5.10 |
| Chemical Composition | AlMg5 (Aluminum with 4.5-5.5% Mg) | AWS A5.10 |
| Welding Processes | MIG (GMAW), TIG (GTAW) | - |
| Available Diameters | 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.2mm | - |
| Shielding Gas (MIG) | 100% Argon or Argon/Helium mixture | - |
The information contained or otherwise referenced herein is presented only as "typical" without guarantee or warranty, and TOKO Corporation expressly disclaims any liability incurred from any reliance thereon. Typical data and Test results for mechanical properties, deposit or electrode composition and other properties were obtained from a weld produced and tested according to prescribed standards, and should not be assumed to be the expected results in a particular application or weldment. Actual results will vary depending on many factors, including, but not limited to, weld procedure, plate chemistry and temperature, weldment design and fabrication methods. Users are cautioned to confirm by qualification testing, or other appropriate means, the suitability of any welding consumable and procedure before use in the intended application.
